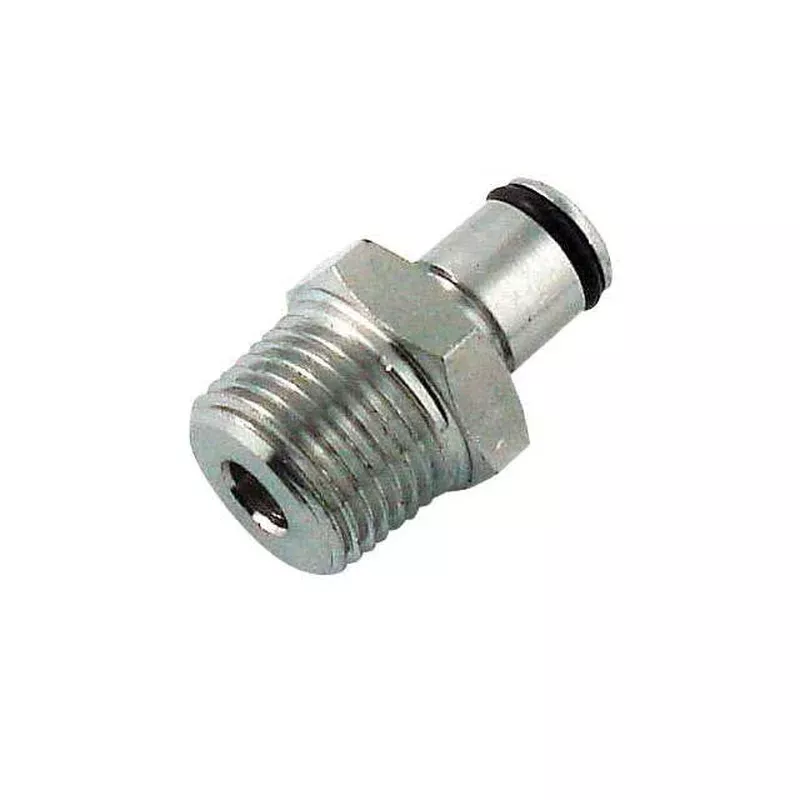

This is a great disconnect if you are running liquid through 3/8″ inner diameter tubing. It is a perfect match for our 3/8″ female quick disconnect.
You can also special order a barbedfemale connector or a male connector with threading. Contact us if you’d like to do this.
Below are the specifications for this high quality disconnect.
LC Series – NSF Listed
Chrome-plated Brass
LC Series Specifications
Pressure: Vacuum to 250 psi, 17.3 bar
Temperature: -40 F to 180 F continuous
Materials: Main components: Chrome-plated Brass
Thumb latch: Stainless Steel
Valves: Acetal
Valve springs: 316 Stainless Steel
External springs and pin: Stainless Steel
O-ring: Food Grade Buna-N
PLC AND LC SERIES ARE COMPATIBLE WITH EACH OTHER
NOT COMPATIBLE WITH APC AND HFC SERIES
