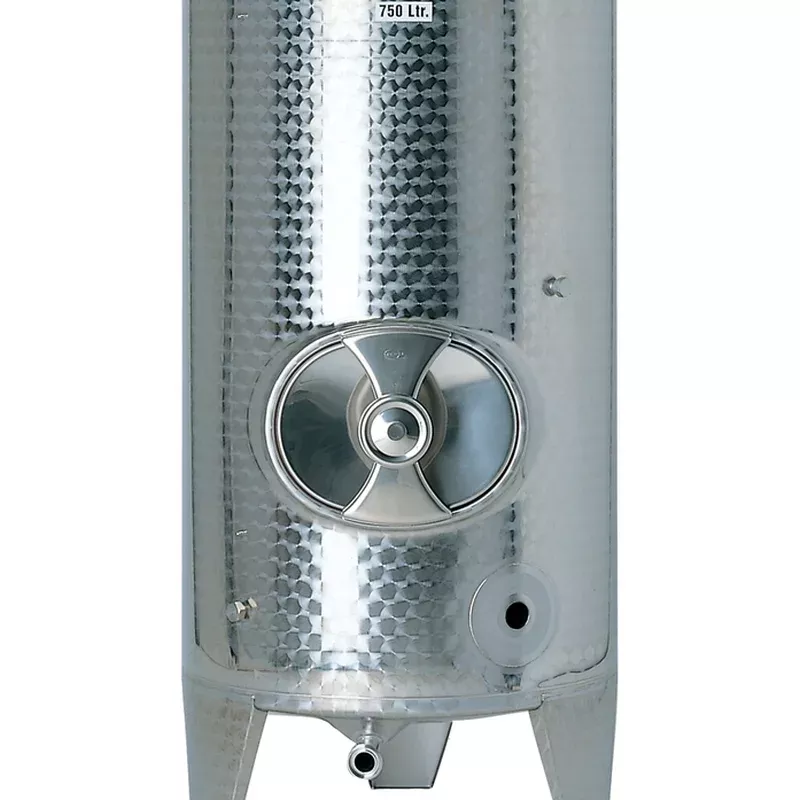

Speidel’s FS-MO and AS-MO tanks are their flagship storage and fermentation tanks. Featuring a huge range of tank capacities, these tanks can be customized with a wide array of add-on features, and can be stacked to take advantage of vertical space in your facility. The FS-MO tank is the tank used for the base, and up to two AS-MO tanks stack on. Please note that with each diameter range there is a maximum total volume for all tanks in a stack shown below, due to the weight of the tanks when full.
Key Features
- Tank walls and base in AISI304 stainless, tank top is AISI316 stainless for additional SO2 gas resistance
- Base tanks from 200cm and up in height, and all stacking tanks, include a ladder support bow
- TC Ferrule on tank top for affixing a valve, bung or blowoff tube.
- TC racking port is strong enough to support a tank mixer.
- TC pocketed tank base drains completely
-
1.5″ TC rack and dump ports. 2″ TC vent.
- All tanks outfitted with DN10 threaded port to accommodate a sample valve (Valve part number H587)
- All tanks feature a weld-free, molded oval racking door/manway
- All tanks are pre-equipped with a DN10 threaded port and mounting points to affix a sight gauge at any time.
View the resource for more information on the key features of all Speidel Tanks.
